CMC: Cermat Ceria
General site detail (Updated 4 Feb 2016) Site name
| Cermat Ceria
| AsiaFlux site code
| CMC
| | Location | Sri Aman, Sarawak | | Position | 01º24'01.6”N, 111º23'54.0”E | | Elevation | 20.11 m
| | Slope | - | Terrain type
| Almost flat | | Area | 1020 ha | | Fetch | 1600 m (max) | | Climate | Tropical rainforest climate (moderately hot - very humid - receives substantial rainfall (Af)) | Mean annual air temperature
| 26.0 C | Mean annual precipitation
| 3158 mm | Vegetation type
| Padang Paya Swamp Forest | Domestic species (Overstory)
| Alan (LShorea albida)
| Dominant species (Understory)
| - | Canopy height
| 25 m | | Age | - | | LAI | -
| Soil type
| Peat soil |

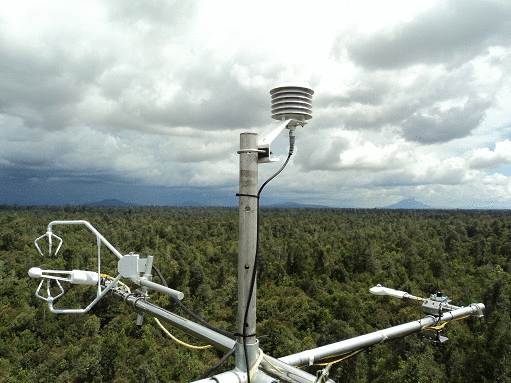

ObservationsEddy Covariance method (CO 2) | System | Open-path system | Wind speed
| 3-dimensional sonic anemometer (CSAT3, Campbell, USA) | Air temperature
| 3-dimensional sonic anemometer (CSAT3, Campbell, USA) | Water vapor
| Open-path CO2/ H2O analyzer (LI-7500, LICOR) | | CO2 | Open-path CO2/ H2O analyzer (LI-7500, LICOR) | Measurement height
| 41 m | Sampling frequency
| 10 Hz | Averaging time
| 30 min | Data logger
| CR3000 (Campbell, USA) | Data storage
| CF | Original data
| Raw
|
Meteorology Observation items
| Levels/ Depth
| Instrument
| Global solar radiation(incoming)
| 41 m | Net Radiometer (CNR4, Kipp & Zonen, The Netherlands) | Global solar
radiation (outgoing)
| 41 m | Net Radiometer (CNR4, Kipp & Zonen, The Netherlands) | Long-wave radiation(incoming)
| 41 m | Net Radiometer (CNR4, Kipp & Zonen, The Netherlands) | | Long-wave radiation(outgoing) | 41 m | Net Radiometer (CNR4, Kipp & Zonen, The Netherlands) | Net radiation
| 41 m | Net Radiometer (CNR4, Kipp & Zonen, The Netherlands) | PPFD (incoming)
| 41 m | Quantum sensor (LI-190SB or LI190SL, LI-COR, USA) | PPFD (outgoing)
| 41 m | Quantum sensor (LI-190SB or LI190SL, LI-COR, USA) | Direct / diffuse radiation
| - | | Direct / diffuse PPFD
| - | | Air temperature
| 5, 41 m | Temperature & Relative Humidity (RH) probe (CS215, Campbell, USA) | | Humidity | 5, 41 m | Temperature & Relative Humidity (RH) probe (CS215, Campbell, USA) | Soil temperature
| 0.05, 0.1 m | Platinum resistance thermometer (Pt100, Japan) | Soil heat flux
| | | Soil water
content
| 0.15, 0.3 m | Soil Water Content Reflectometer (CS616) | Wind speed
| 41 m
| TDR sensor (CS616, Campbell, USA) | Wind direction
| 41 m | TDR sensor (CS616, Campbell, USA) | Barometric
pressure
| - | | | Precipitation | 1 m | Tipping-bucket rain gauge (TE525MM, Texas Instrument, USA) | CO2 concentration
| 0.5, 1, 3, 11, 21, 41 m | Closed-path CO2 analyzer (LI820, LI-COR, USA) |
Other Soil respiration
| Closed chamber method (CO2, CH4, N2O), Measuring system: Manually Measuring intervals; Monthly
| | Ecological Investigations | -
|
|
|
|
Observation Period and Data Availability Measurement Period
| From January, 2011 to present | Measurement Frequency
| Continuous | Data Availability
| N/A |
Contact
Lulie Melling (lullie_melling@yahoo.com)
Tropical Peat Research Laboratory Unit,
Chief Minister’s Department,
Lot 6035, Kuching-Kota Samarahan Expressway,
94300 Kota Samarahan
Tel:+60-82-662-495 Fax:+60-82-662-497
| Wong Guan Xhuan (jiaxiang31 [at] hotmail.com)
Edward Baran (edward.b.aeries [at] gmail.com)
Kevin Kemudang (kevin77_k [at] yahoo.com)
|
Calibration Information
CO2 analyzers were calibrated every months using spans gases.
|
Infrastructure
Tower, Solar energy system
|
Research Fund
| Malaysian Government, Sarawak State Government |
|
|
|
